SS316
Rev A1

Spider Ord Nr.: M

Accessories to be ordered separately.
SPIDER FITTING
CLASSIC
KNB Shown are not a part of the standard supply. To be ordered separately from the table below.
Tools
           18x19
D-48
F-32
F-45
ALLEN 8
Accessories
SS Allen Bolt M12
 Ord Nr. M15697
Locking Pin
 Ord Nr. M19477
B Spacer Flat P
 Details on Page 10
W Spacer Flat P
 Details on Page 10

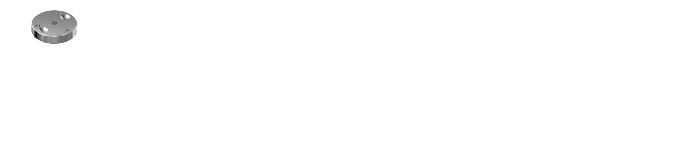

B Spacer Round P
 Details on Page 11
W Spacer Round P
 Details on Page 12
Shims
 Details on Page 14
DGU Ring
 Ord Nr. M18662
GSC Glass Ltd.
SCT-2A

S.No

Glass Thick (GT)

KNB

H (mm)

Name

KNB Ord Nr. (KB4)

KNB Ord Nr. (KB6)

1

08-15

KB4-15/KB6-15

112

SCT-2A-KB4-15

M10090

M13209

2

16-20

KB4-20/KB6-20

117

SCT-2A-KB4-20

M18330

M26505

3

21-25

KB4-25/KB6-25

122

SCT-2A-KB4-25

M14157

M26506

4

26-30

KB4-30/KB6-30

127

SCT-2A-KB4-30

M26499

M26507

5

31-35

KB4-35/KB6-35

132

SCT-2A-KB4-35

M19873

M26508

6

36-40

KB4-40/KB6-40

137

SCT-2A-KB4-40

M17881

M26509

7

41-45

KB4-45/KB6-45

142

SCT-2A-KB4-45

M19156

M26510

Double arm wall to glass
B Spacer Flat DS
 Details on Page 10
W Spacer Flat DS
 Details on Page 10
B Spacer Round DS
 Details on Page 11
W Spacer Round DS
 Details on Page 13
CSK Screw M8X60
 Ord Nr. M12633
RS2FBB Washer
 Ord Nr. M10138
Shims
 Details on Page 14
Fisher SLM 8N
 Ord Nr. M10075
GP SCT-2A
 Details on Page 15
WP SCT-2A
 Details on Page 15
PK SCT-2A
 Details on Page 16
Hex Bolt M12X30
 Ord Nr. M10064

26480

8
