ACCESSORIES
SPIDER FITTING
SK SERIES
Rev A1
GSC Glass Ltd.
(Optional, to be ordered separately)

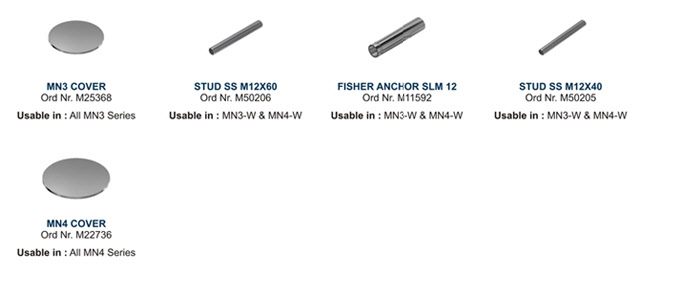

MN3 COVER
 Ord Nr. M25368
Usable in : All MN3 Series
STUD SS M12X60
 Ord Nr. M50206
FISHER ANCHOR SLM 12
 Ord Nr. M11592
STUD SS M12X40
 Ord Nr. M50205
MN4 COVER
 Ord Nr. M22736
Usable in : All MN4 Series

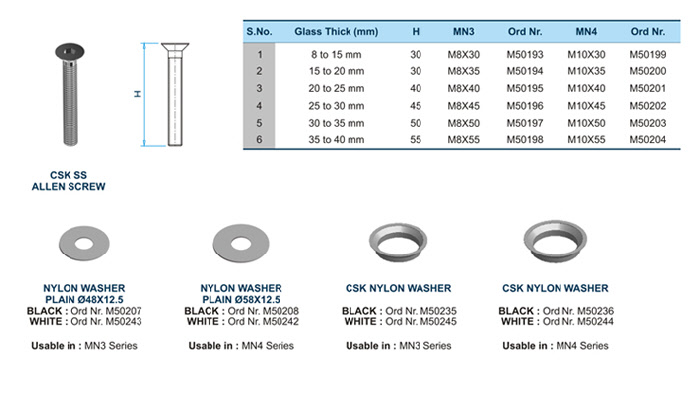

CSK SS
 ALLEN SCREW
NYLON WASHER
 PLAIN Ø48X12.5
 BLACK : Ord Nr. M50207
 WHITE : Ord Nr. M50243
Usable in : MN3 Series
NYLON WASHER
 PLAIN Ø58X12.5
 BLACK : Ord Nr. M50208
 WHITE : Ord Nr. M50242
Usable in :  MN4 Series
CSK NYLON WASHER
BLACK : Ord Nr. M50235
 WHITE : Ord Nr. M50245
Usable in : MN3 Series
CSK NYLON WASHER
BLACK : Ord Nr. M50236
 WHITE : Ord Nr. M50244
Usable in : MN4 Series
S.No
Glass Thick (mm)
H
MN3
Ord Nr.
MN4
Ord Nr.
1
8 to 15 mm
30
M8X30
M50193
M10X30
M50199
2
15 to 20 mm
35
M8X35
M50194
M10X35
M50200
3
20 to 25 mm
40
M8X40
M50195
M10X40
M50201
4
25 to 30 mm
45
M8X45
M50196
M10X45
M50202
5
30 to 35 mm
50
M8X50
M50197
M10X50
M50203
6
35 to 40 mm
55
M8X55
M50198
M10X55
M50204
SPARE PARTS :
MODERN SYSTEM
MN SERIES
12
Usable in : MN3-W & MN4-W
Usable in : MN3-W & MN4-W
Usable in : MN3-W & MN4-W
